ZY200X Pressure Reducing Valve

The ZY200X pressure reducing valve designed by Dazhong Valve Group, the hydraulic control valve is generally divided into two categories: diaphragm type and piston type, both of which work on the same principle. It consists of a main valve and its externally installed needle valve, pilot valve, conduit and pressure gauge, etc., and evolves into a remote control float valve, pressure reducing valve, and slow-closing check valve according to the purpose, function and location of use. , flow control valve, pressure relief valve, hydraulic electric control valve, fixed water level valve, water pump control valve, differential pressure balance valve, emergency shutdown valve, etc.

Hydraulic control valves are generally divided into two categories: diaphragm type and piston type, both of which work on the same principle.
It is composed of a main valve and its external needle valve, pilot valve, conduit and pressure gauge, etc., which are combined with the purpose of use.
Evolves into remote control float valve, pressure reducing valve, slow-closing check valve, flow control valve, pressure relief and pressure holding valve, hydraulic electric control valve, fixed water level valve, water pump control valve due to different functions and places , differential pressure balance valve, emergency shut-off valve, etc.
The valve can be installed vertically or horizontally in the pipeline.
The hydraulic control valve is powered by the upstream and downstream pressure difference, controlled by the pilot valve, so that the diaphragm hydraulic differential operation is completely automatically adjusted by the hydraulic power, so that the main valve disc is completely opened or completely closed, or in the Adjust the status.
Mainly controls the fixed outlet pressure of the main valve. The outlet pressure of the main valve does not change due to changes in the inlet pressure, nor does it change the outlet pressure due to changes in the outlet flow of the main valve.
Suitable for industrial water supply and drainage, fire water supply and domestic water pipe network system.

Parameters

Few Listed Here

Ask For Details

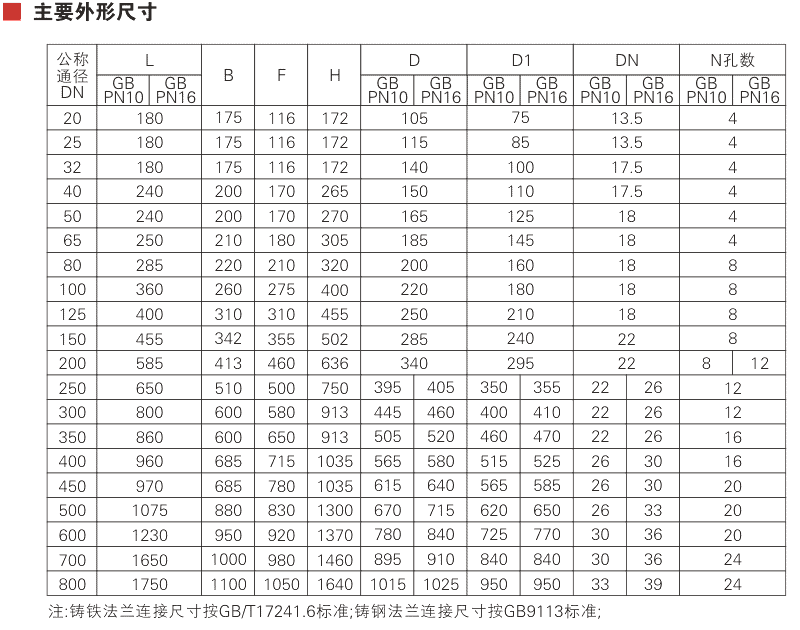

ZY200X pressure reducing valve Parameter

ZY200X pressure reducing valve Parameter 1

ZY200X Pressure Reducing Valve

Hydraulic control valves are generally divided into two categories: diaphragm type and piston type, both of which work on the same principle.

It is composed of a main valve and its external needle valve, pilot valve, conduit and pressure gauge, etc., which are combined with the purpose of use.

The valve can be installed vertically or horizontally in the pipeline.

Mainly controls the fixed outlet pressure of the main valve. The outlet pressure of the main valve does not change due to changes in the inlet pressure, nor does it change the outlet pressure due to changes in the outlet flow of the main valve.

Suitable for industrial water supply and drainage, fire water supply and domestic water pipe network system.
