Z2F100X Remote Control Float Valve

Z2F100X remote control float valve designed by Dazhong Valve Group, this product is the second generation of new hydraulic control valve designed and manufactured by our group's engineering and technical personnel with reference to similar new and advanced products at home and abroad. The valve consists of main valve, pilot valve and control valve. The structural form is the hydraulic control cut-off form, which is connected by a rubber diaphragm, and the valve disc is opened and closed.

• This product is the second-generation new hydraulic control valve designed and manufactured by our group's engineers and technicians with reference to the same type of advanced products at home and abroad.

• This valve is suitable for automatic water supply systems such as high-rise buildings, industrial and mining enterprises, parks, etc., and has the characteristics of small size, light weight, convenient installation and maintenance, etc.

• The valve consists of a main valve, a pilot valve and a control valve. The structure is in the form of hydraulic control cut-off, connected by a rubber diaphragm, and the valve disc is opened and closed.

• Control the liquid level of the water tower or pool, with sensitive action and small flow resistance. The small floating ball valve can be installed separately from the main valve. The best installation method for the main valve is horizontal installation.

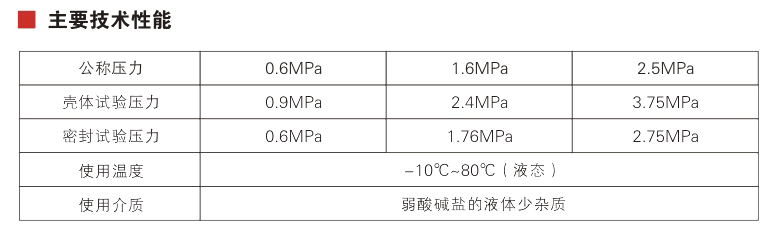

• Pressure level: PN6- PN25

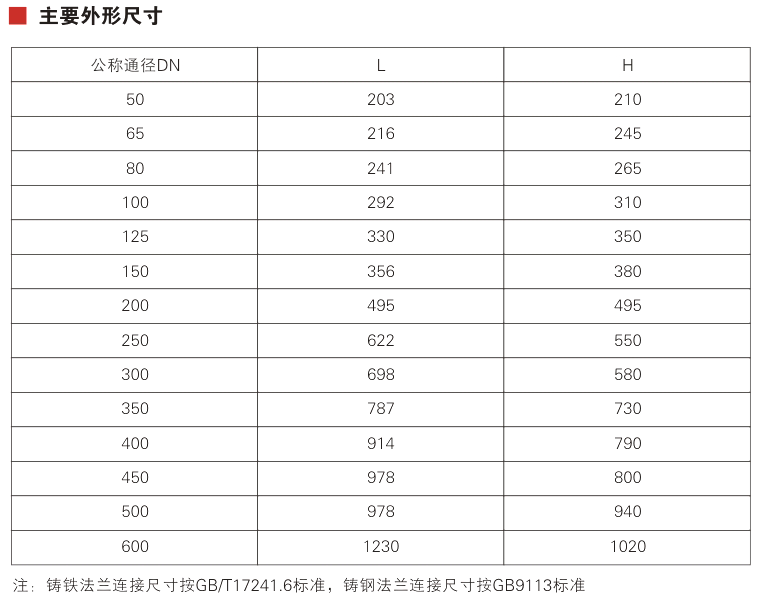

• Size: DN50mm- DN600mm
