Z2W100D Fixed Water Level Valve

The Z2W100D water level valve designed by Dazhong Valve Group is the second-generation new hydraulic control valve designed and manufactured by our group's engineers and technicians with reference to the same type of new and advanced products at home and abroad. The valve consists of main valve, pilot valve and control valve. The structural form is the hydraulic control cut-off form, which is connected by a rubber diaphragm, and the valve disc is opened and closed.

• This product is the second-generation new hydraulic control valve designed and manufactured by our group's engineers and technicians with reference to the same type of advanced products at home and abroad.

• This valve is suitable for automatic water supply systems such as high-rise buildings, industrial and mining enterprises, parks, etc., and has the characteristics of small size, light weight, convenient installation and maintenance, etc.

• The valve consists of a main valve, a pilot valve and a control valve.

• The structure is in the form of hydraulic control cut-off, connected by a rubber diaphragm, and the valve flap opens and closes.

• Same function as 100X When the water level reaches the full water level, the valve will automatically close, the water in the water tank will gradually drop to the set water level by the user, and the fixed water level valve can be opened again to replenish the water, and the water level will drop accordingly. The valve can be opened within 2~5cm to avoid frequent valve action and failure.

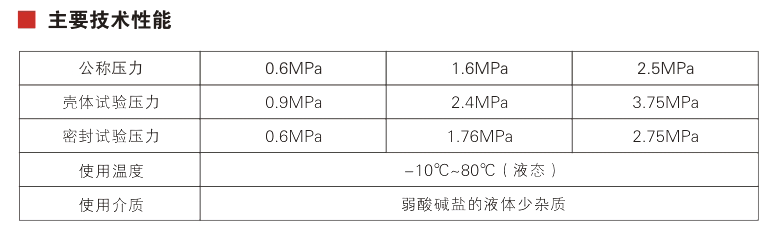

• Pressure level: PN10, PN16, PN25

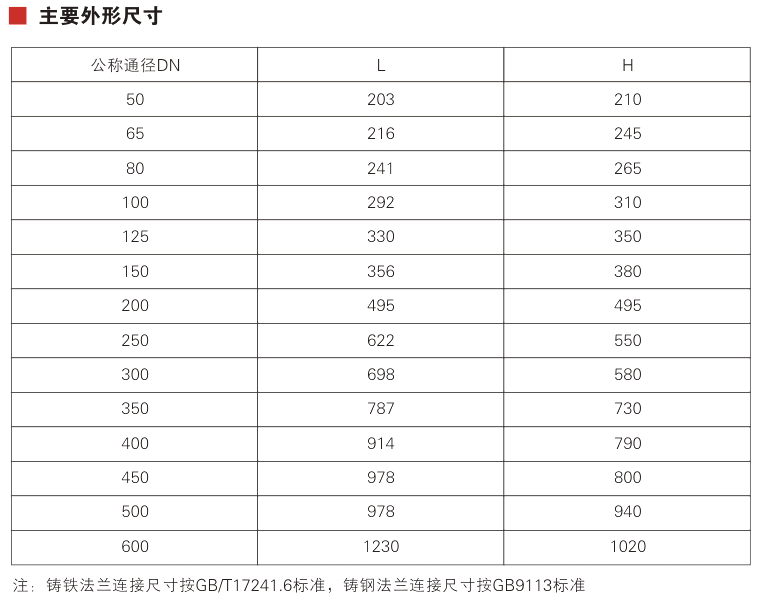

• Aperture: DN50mm~ DN300mm
