Y43X Fixed Proportional Pressure Reducing Valve

Y43X fixed proportional pressure reducing valve designed by Dazhong Valve Group, Y43X-16 type short series proportional pressure reducing valve is composed of valve body, piston gland, O-ring, gasket and other parts. The valve uses the inner cavity of c to set a floating piston, and uses the different cross-sectional areas at both ends of the piston to cause a pressure difference to change the pressure conditions of the inlet and outlet water.

• The Y43X-16 short series proportional pressure reducing valve produced by our group is composed of valve body, piston gland, O-ring, gasket and other parts.

• The valve uses a floating piston in the valve cavity, and uses the different cross-sectional areas at both ends of the piston to cause a pressure difference to change the pressure conditions of the inlet and outlet

• In short, when the pipeline is under pressure, the difference in the area at both ends of the piston creates the pressure difference between the inlet and outlet water at the inlet and outlet of the valve to achieve the purpose of decompression

• This product is both "dynamic pressure reduction" and "static pressure reduction". It has a rigorous structure, novelty, smooth operation, light weight, easy installation and maintenance, wear resistance and leakage prevention. It is manufactured with high-quality craftsmanship and surface Treatment, anti-corrosion and anti-rust will never pollute the water quality

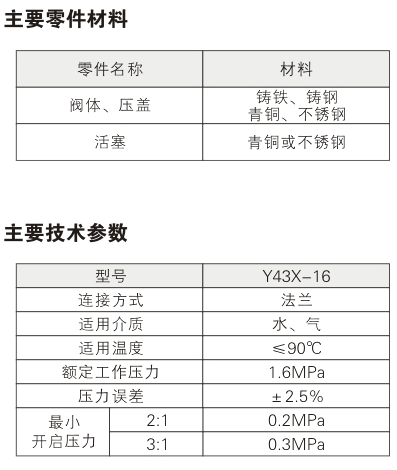

• The standard pressure ratios provided by our company are 2: 1, 3: 1, 4: 1, 5: 1, 3: 2, 5: 2, etc. We can design pressure reducing valves with special ratios according to user requirements.
