Y42X Pressure Reducing Valve

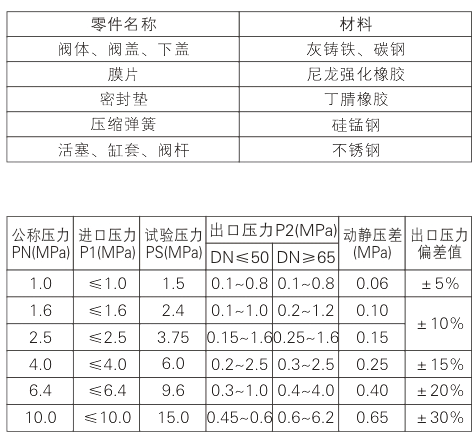

The Y42X pressure reducing valve designed by Dazhong Valve Group, the Y42X elastic piston pressure reducing valve series products have reached the international level of similar products through the introduction of new technologies and improvements in manufacturing process and structure. The valve is mainly composed of valve body, valve It is composed of parts such as cover, compression spring, valve stem, piston, cylinder liner, valve seat and gasket. It is suitable for water, air and non-corrosive liquid pipelines with a working temperature of 0°C~90°C, as well as cold and hot water and fire water supply systems in high-rise buildings. It can replace conventional partitioned water pipes, simplify and save system equipment and reduce engineering costs. .

• The Y42X type elastic piston pressure reducing valve series products produced by the group have reached the international level of similar products through the introduction of new technologies and improvements in manufacturing process and structure. The valve is mainly composed of valve body and valve cover. , Compression spring, valve stem, piston, cylinder liner, valve seat and gasket and other parts.

• Its main feature is that the pressure behind the valve is directly transmitted and acts on the bottom of the piston and the pressure above the piston to maintain the best balance.

• Sensitive, fast, reliable performance and long service life.

• Applicable to water, air and non-corrosive liquid pipelines with working temperature of 0°C~90°C, as well as hot and cold water and fire water supply systems in high-rise buildings, can replace conventional partition water pipes, simplify and save system costs equipment and reduce the project cost.

• The temperature of the replacement material can reach 250°C.
