Y416 Pressure Reducing Regulator Valve

The Y416 pressure reducing and regulating valve designed by Dazhong Valve Group is composed of valve body, valve cover, compression spring, valve stem, piston (diaphragm), cylinder liner, valve seat and sealing gasket. Its main features: the pressure behind the valve is directly transmitted and acts on the bottom of the piston (diaphragm), and maintains the best balance with the pressure above the piston (diaphragm), with sensitive, fast, reliable performance and long service life. Applicable medium: hot and cold water, replacement parts can be used for compressed air, oil, etc. Applicable temperature: 0~90°C, the replacement material can reach 150°C.

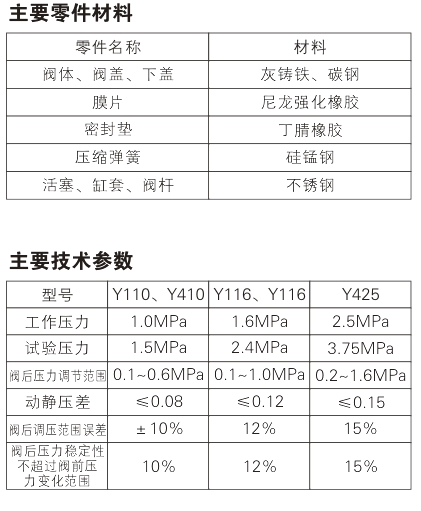

• The Y110, Y116, Y416, Y425 type pressure reducing and regulating valve produced by our group consists of valve body, valve cover, compression spring, valve stem, piston (diaphragm), cylinder liner, valve seat and gasket, etc. Components.

• Its main features: the pressure behind the valve is directly transmitted and acts under the piston (diaphragm), and maintains the best balance with the pressure above the piston (diaphragm), the action is sensitive, fast, reliable in performance, long lasting.

• Applicable medium: hot and cold water, replacement parts can be used for compressed air, oil, etc.

• Applicable temperature: 0~90°C, the material can be changed to 150°C.
