T40H Rotary Control Valve

The T40H rotary control valve designed by Dazhong Valve Group, the T40H water supply rotary control valve is mainly composed of valve body, valve seat, valve disc, valve stem, valve cover and other parts. This valve is suitable for medium and low pressure boiler feed water pipes and high pressure heater drain pipes. By rotating the cylindrical valve disc, the area of the window formed by the valve seat and the valve seat is changed, so as to achieve the purpose of regulating flow.

The T40H water supply rotary control valve produced by our group is mainly composed of valve body, valve seat, valve disc, valve stem, valve cover and other parts.
This valve is suitable for medium and low pressure boiler feed water pipes and high pressure heater drain pipes.
By rotating the cylindrical valve disc, the area of the window formed with the valve seat changes, so as to achieve the purpose of regulating the flow.
The rotary opening and closing angle of the regulating valve is 90°C. It is indicated by the opening indicator plate above the regulating valve.
It can be equipped with DKJ-310 electric actuator to realize remote control and automatic operation.

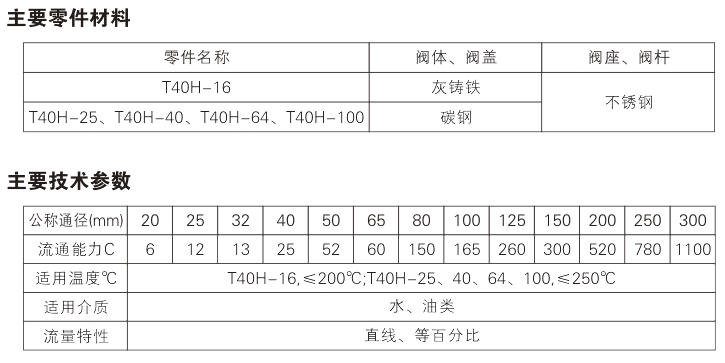

Parameters

Few Listed Here

Ask For Details

T40H Rotary Control Valve

The T40H water supply rotary control valve produced by our group is mainly composed of valve body, valve seat, valve disc, valve stem, valve cover and other parts.

This valve is suitable for medium and low pressure boiler feed water pipes and high pressure heater drain pipes.

By rotating the cylindrical valve disc, the area of ​​the window formed with the valve seat changes, so as to achieve the purpose of regulating the flow.

The rotary opening and closing angle of the regulating valve is 90°C. It is indicated by the opening indicator plate above the regulating valve.

It can be equipped with DKJ-310 electric actuator to realize remote control and automatic operation.

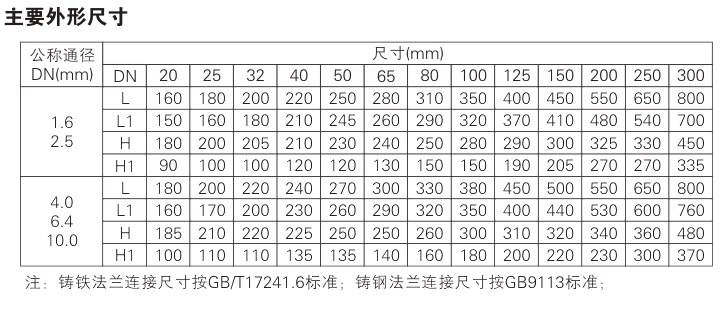

Parameters

By rotating the cylindrical valve disc, the area of the window formed with the valve seat changes, so as to achieve the purpose of regulating the flow.
