DZS77HXI Type Double Control Multifunctional Hydraulic Control Valve

The DZS77HXI type dual-control multi-function hydraulic control valve designed by Dazhong Valve Group is a new generation of intelligent control valve developed by itself. It has intelligent digital display of valve position, can display on-site, and can output signal 4-20mA to microcomputer for remote monitoring. And it has the functions of non-return and eliminating water hammer. Reliable sealing and zero leakage. The flow resistance is small, the flow resistance coefficient is 0.1~0.7, and the energy saving effect is remarkable. Reliable elimination of water hammer. After starting the pump, the valve will not be opened until the inlet pressure reaches the predetermined value, which can reach the minimum starting current of the pump. .

DZS77HXIM double-control multi-function hydraulic control valve is a new generation of intelligent control valve developed by our group.
It has intelligent digital display of valve position, can display on site, and can output signal 4- 20mA to microcomputer for remote monitoring.
It also has the functions of non-return and eliminating water hammer. It can protect the safety of the water pump pipe network system. It is especially suitable for remote monitoring systems.
Reliable sealing, zero leakage. Small flow resistance, the flow resistance coefficient is 0.1~0.7, and the energy saving effect is remarkable.
Reliable to eliminate water hammer. After starting the pump, the valve will not be opened until the inlet pressure reaches the predetermined value, which can reach the minimum starting current to ensure the safety of the motor and electronic control facilities.

Parameters

Few Listed Here

Ask For Details

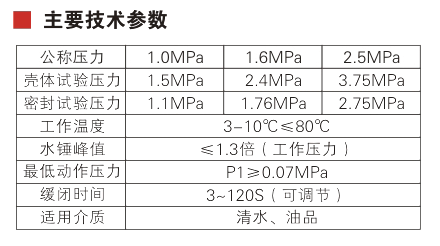

DZS77HXI type double-control multi-function hydraulic control valve Parameter

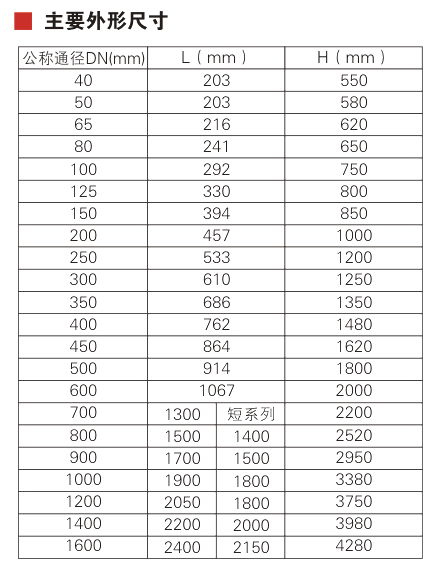

DZS77HXI type double-control multi-function hydraulic control valve Parameter 1

DZS77HXI Type Double Control Multifunctional Hydraulic Control Valve

DZS77HXIM double-control multi-function hydraulic control valve is a new generation of intelligent control valve developed by our group.

It has intelligent digital display of valve position, can display on site, and can output signal 4- 20mA to microcomputer for remote monitoring.

It also has the functions of non-return and eliminating water hammer. It can protect the safety of the water pump pipe network system. It is especially suitable for remote monitoring systems.

Reliable sealing, zero leakage. Small flow resistance, the flow resistance coefficient is 0.1~0.7, and the energy saving effect is remarkable.

Reliable to eliminate water hammer. After starting the pump, the valve will not be opened until the inlet pressure reaches the predetermined value, which can reach the minimum starting current to ensure the safety of the motor and electronic control facilities.

Parameters
