Full-Lift Ultra-High Pressure Safety Valve - Dazhong Valve Group | Since 1997

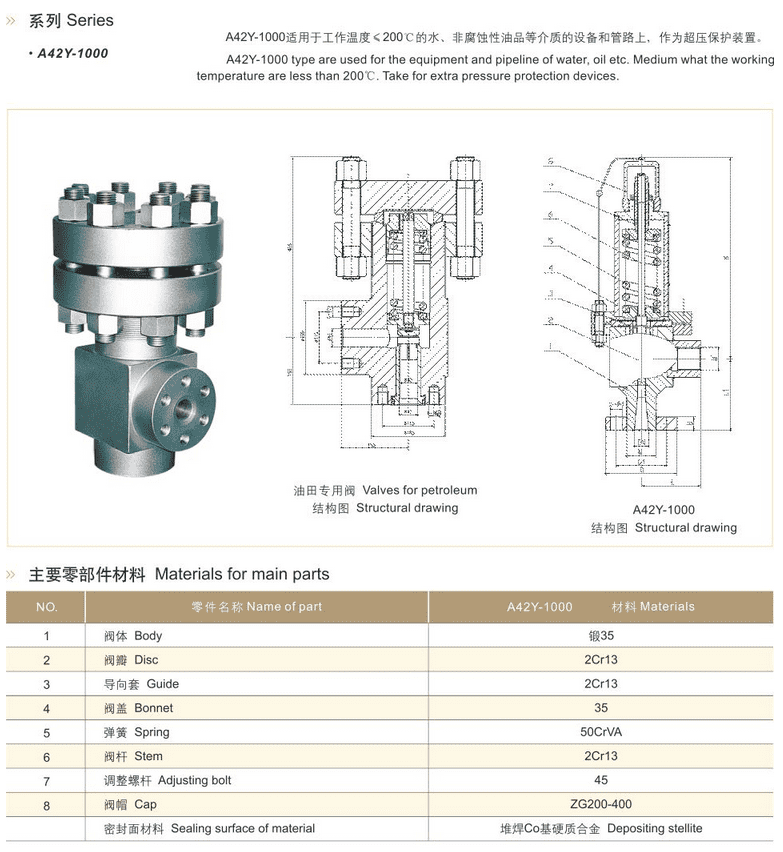

Full-Lift Ultra-High Pressure Safety Valve

The full-lift ultra-high pressure safety valve designed by Dazhong Valve Group is a safety valve of YOY Yongyi Valve Group, which is a cooperative brand of Yongyi Valve Group. It is used for the valve of equipment such as non-corrosive oil. A42Y-1000 ultra-high pressure safety valve is suitable for equipment and pipelines with working temperature ≤ 200 ℃, such as water, non-corrosive oil and other media, as an over-pressure protection device.

  • A42Y full-lift ultra-high pressure safety valve is a valve used for equipment such as non-corrosive oil and other media.

  • A42Y-1000 ultra-high pressure safety valve is suitable for equipment and pipelines with working temperature ≤ 200 ℃ water, non-corrosive oil and other media, as an over-pressure protection device.

  • Design and manufacture standard: GB/T 12243-2005

  • Structure length standard: GB/T 12221-2005

  • Connecting flange standard: GB/T 9113

  • Pressure temperature class: GB/T 12224-2005

  • Test inspection standard: GB/T 13927-2008

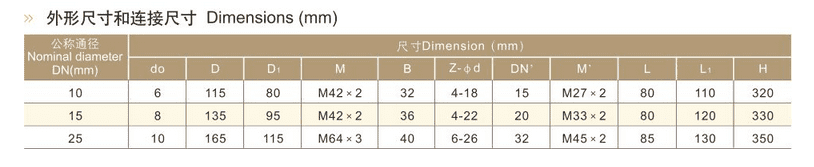

Parameters

Few Listed Here

Ask For Details
Full-Lift Ultra-High Pressure Safety Valve
