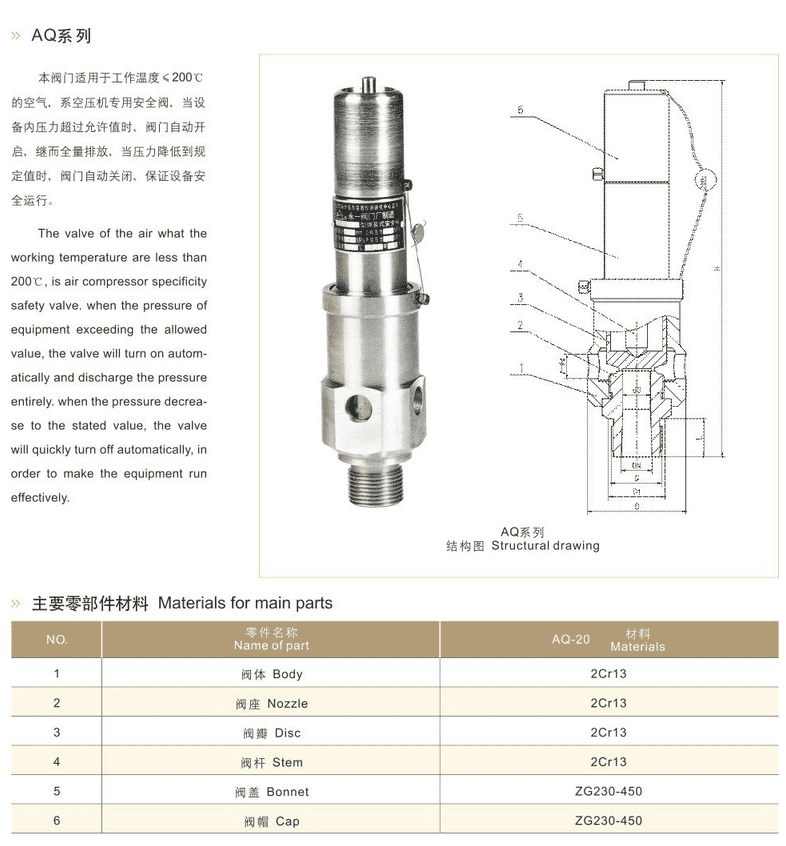

Air Compressor Safety Valve

The air compressor safety valve cooperation brand YOY Yongyi Valve Group designed by Dazhong Valve Group, the air compressor safety valve has two types: spring type and rod type. The main parameter of the air compressor safety valve is the displacement, which is determined by the diameter of the valve seat and the opening height of the valve disc. The micro-opening type means that the opening height of the valve disc is 1/40~1/20 of the throat diameter of the valve seat. Full lift means that the opening height of the disc is 1/4 of the throat diameter of the valve seat.

• There are two types of air compressor safety valves: spring type and rod type.

• The main parameter of the air compressor safety valve is the displacement, which is determined by the diameter of the valve seat and the opening height of the valve disc. According to the different opening heights, it is divided into two types: micro-opening type and full-opening type. .Slight opening type means that the opening height of the valve disc is 1/40~1/20 of the throat diameter of the valve seat. Full opening type means that the opening height of the valve disc is 1/4 of the throat diameter of the valve seat.

• Applicable to: urban construction, chemical industry, metallurgy, petroleum, pharmaceutical, food, beverage, environmental protection.
