ZDLQ-X Electronic Electric Three-Way Split-Confluence Control Valve

The ZDLQ-X electronic electric three-way split-confluence control valve, ZDLQ electronic electric three-way confluence control valve and ZDLX electronic electric three-way divider control valve designed by Dazhong Valve Group are composed of PS series and 3610 series straight-stroke electric actuators and Low flow resistance straight through single seat valve. This product can replace two single-seat and double-seat regulating valves that are on and off each other, and is used for the regulation and control of liquid, gas, steam and other media.

ZDLQ electronic electric three-way confluence regulating valve, ZDLX electronic electric three-way diverting regulating valve, consists of PS series and 3610 series straight stroke electric actuators and low flow resistance straight through single seat valve. (also available with Other brands of linear actuators).
The electric actuator is an electronic integrated structure with a servo amplifier inside. The valve opening can be controlled by inputting the control signal (4-20mADC or 1-5VDC) and power supply, and the pressure, flow, liquid level, Adjustment of working parameters such as temperature.
It has the characteristics of sensitive action, simple connection, large flow, small size and high adjustment accuracy.
The control accuracy and performance are significantly improved compared to the DKZ type.
The electronic electric three-way control valve has the advantages of high adjustment accuracy, stable and reliable action, etc.
The confluence type is mainly used to mix two fluids into a third fluid; the split type is mainly used to divide a fluid into two fluids.
This product can replace two single-seat and double-seat control valves that switch on and off each other, and is used for the regulation and control of liquid, gas, steam and other media.

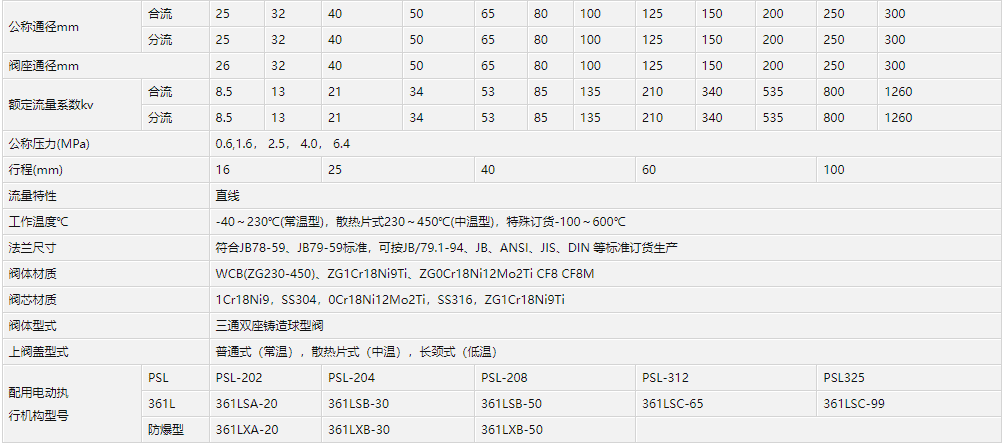

Parameters

Few Listed Here

Ask For Details

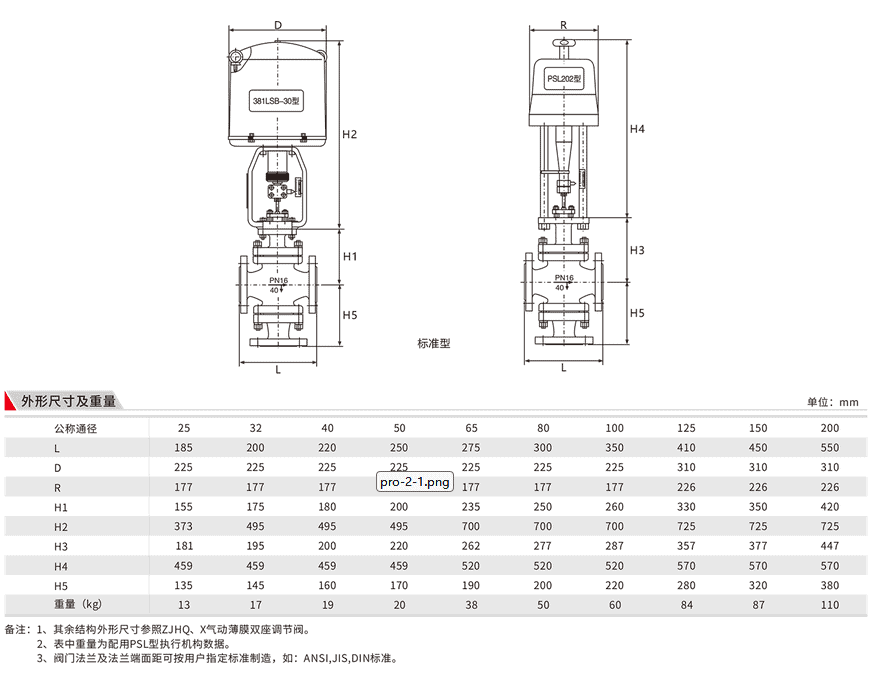

ZDLQ-X electronic electric three-way split and confluence regulating valve

ZDLQ-X electronic electric three-way split and confluence regulating valve 1

ZDLQ-X Electronic Electric Three-Way Split-Confluence Control Valve

The electric actuator is an electronic integrated structure with a servo amplifier inside. The valve opening can be controlled by inputting the control signal (4-20mADC or 1-5VDC) and power supply, and the pressure, flow, liquid level, Adjustment of working parameters such as temperature.

It has the characteristics of sensitive action, simple connection, large flow, small size and high adjustment accuracy.

The control accuracy and performance are significantly improved compared to the DKZ type.

The electronic electric three-way control valve has the advantages of high adjustment accuracy, stable and reliable action, etc.

The confluence type is mainly used to mix two fluids into a third fluid; the split type is mainly used to divide a fluid into two fluids.

This product can replace two single-seat and double-seat control valves that switch on and off each other, and is used for the regulation and control of liquid, gas, steam and other media.

Parameters
