Electric Regulating Butterfly Valve

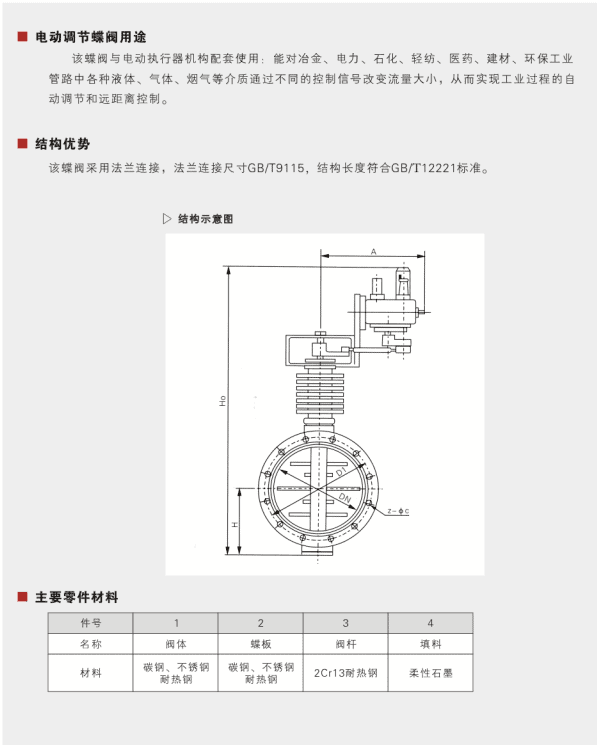

The electric regulating butterfly valve designed by Dazhong Valve Group, the butterfly plate of the butterfly valve is installed in the diameter direction of the pipeline. The butterfly valve is used together with the electric actuator mechanism. The butterfly valve adopts flange connection, the flange connection size is GB/T9115, and the structural length conforms to the GB/T12221 standard.

• The butterfly valve used in conjunction with the electric actuator mechanism can change various liquid, gas, flue gas and other media in metallurgy, electric power, petrochemical, light textile, medicine, building materials, environmental protection industrial pipelines through different control signals. Flow size, so as to achieve automatic adjustment and remote control of industrial processes

• The butterfly valve adopts flange connection, the flange connection size is GB/T9115, and the structural length conforms to the GB/T12221 standard.
