D971X Electric Wafer Butterfly Valve

The D971X electric wafer butterfly valve designed by Dazhong Valve Group adopts a double eccentric structure. The sealing material is made of stainless steel and nitrile oil-resistant rubber. The rubber sealing ring can be located on the valve body or on the butterfly plate. The medium, the overall paint, can effectively prevent corrosion and only need to replace the sealing material of the sealing valve seat, the two-way sealing function, the installation is not controlled by the flow of the medium, and it is not affected by the spatial position.

Electric wafer type soft sealing butterfly valve, double eccentric flange type butterfly valve with compact structure, easy 90° rotary switch, reliable sealing, long service life, electric wafer type soft sealing butterfly valve suitable for temperature≤120℃, nominal It is used for water supply and drainage and gas pipelines with pressure ≤1.6MPa, such as food, medicine, chemical industry, petroleum, electric power, textile and paper making, etc. It is widely used in water plants, power plants, steel plants, papermaking, chemical industry, etc. In the water supply and drainage of food and drink systems, it is used as a regulation and cut-off.
The electric wafer type soft sealing butterfly valve adopts double eccentric structure, which has the sealing function of tighter and tighter, and has reliable sealing performance. The pair of sealing materials is stainless steel and nitrile oil-resistant rubber, which has a long service life.
The rubber sealing ring can be located on the valve body or on the disc, and can be applied to different media for users to choose. The disc adopts frame structure, which has high strength, large flow area and small flow resistance. .
The whole paint can effectively prevent corrosion and can be used for different media as long as the sealing material of the sealing valve seat is replaced.
The whole paint can effectively prevent corrosion and can be used for different media as long as the sealing material of the sealing valve seat is replaced.

Parameters

Few Listed Here

Ask For Details

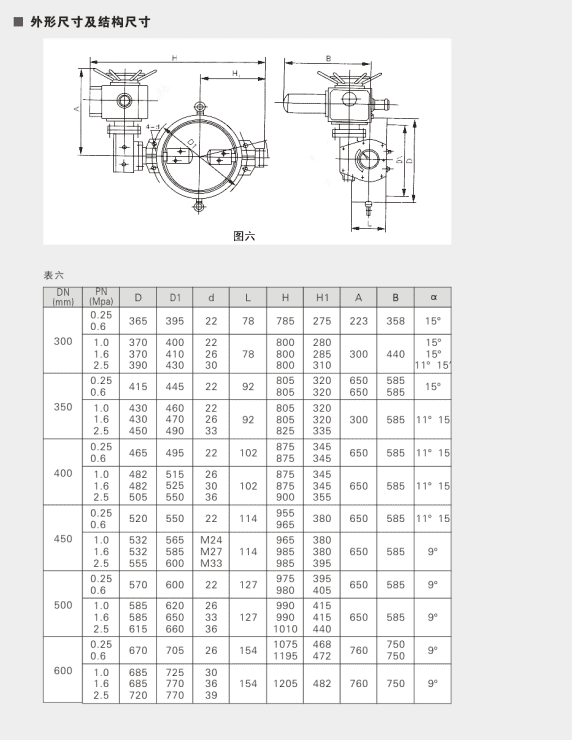

D971X Electric Wafer Butterfly Valve Parameter

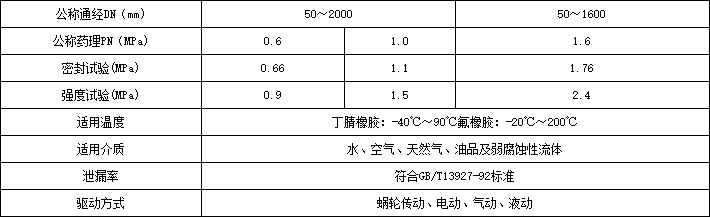

D971X Electric Wafer Butterfly Valve Parameter 1

D971X Electric Wafer Butterfly Valve

The electric wafer type soft sealing butterfly valve adopts double eccentric structure, which has the sealing function of tighter and tighter, and has reliable sealing performance. The pair of sealing materials is stainless steel and nitrile oil-resistant rubber, which has a long service life.

The rubber sealing ring can be located on the valve body or on the disc, and can be applied to different media for users to choose. The disc adopts frame structure, which has high strength, large flow area and small flow resistance. .

The whole paint can effectively prevent corrosion and can be used for different media as long as the sealing material of the sealing valve seat is replaced.

The whole paint can effectively prevent corrosion and can be used for different media as long as the sealing material of the sealing valve seat is replaced.
